RigExpert AA-650 ZOOM 0.1-650MHz

( Užsakoma prekė, pristatymas per 9 dienas )

• 0.1 to 650 MHz

• 1 kHz

• 1 to 10 in chart modes
• 1 to 100 in numerical modes

• 0…2000, -2000…2000

• Optional open-short-load calibration
• R, X chart, 20 to 500 points
• Return loss chart, 20 to 500 points

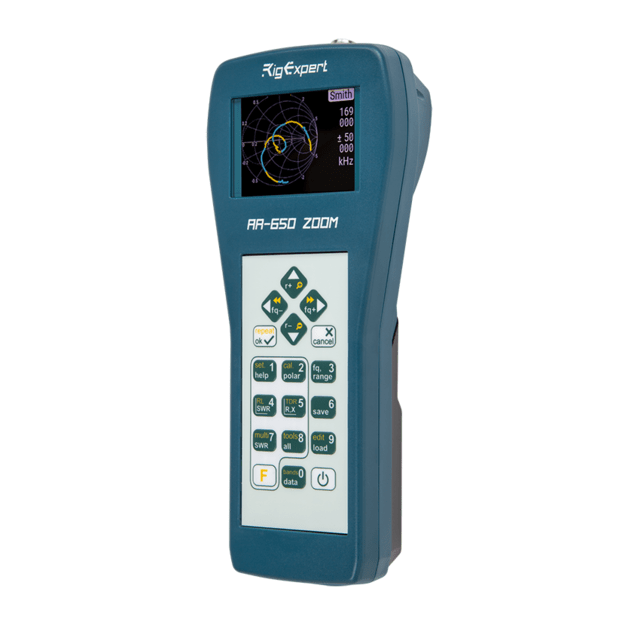

• Smith chart, 20 to 500 points
• SWR at single or multiple frequencies
• SWR chart, 20 to 500 points
• TDR chart (Time Domain Reflectometer)
• Сable tools (StubTuner, Cable Length, Impedance, Loss measurements)

• Connector type: N
• Output power: -10 dBm (at a load of 50 ohms)
• Output signal shape: square

• Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used

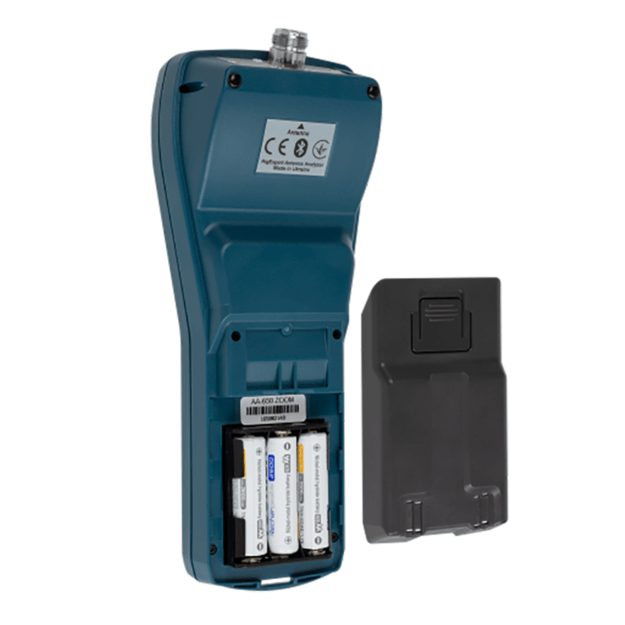

• Three 1.2V Ni-MH batteries, type AA
• Three 1.5V alkaline batteries, type AA
• When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

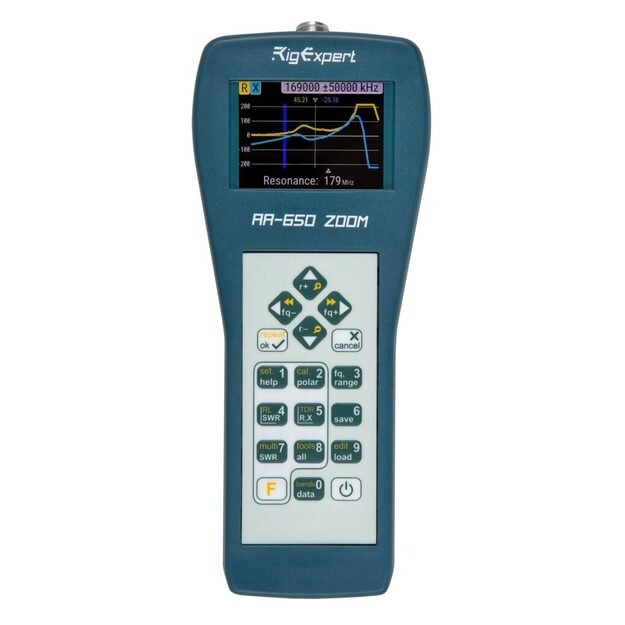

• 320×240 color TFT display
• 6x3 keys on the water-proof keypad
• Bluetooth Specification v.4.2, LE
• Menus and help screens in English (by default), Japanese, Ukrainian, Polish, Spanish and German
• USB connection to a personal computer

• 0…40 °C (32…104 °F)

• 450 g (15.9 oz)

• 100 × 230 × 55 mm, (4 × 9 × 2 in)

• Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter

• 4820185420297

• Specifications are subject to change without notice
• Мade in Ukraine

• A37ZJ
