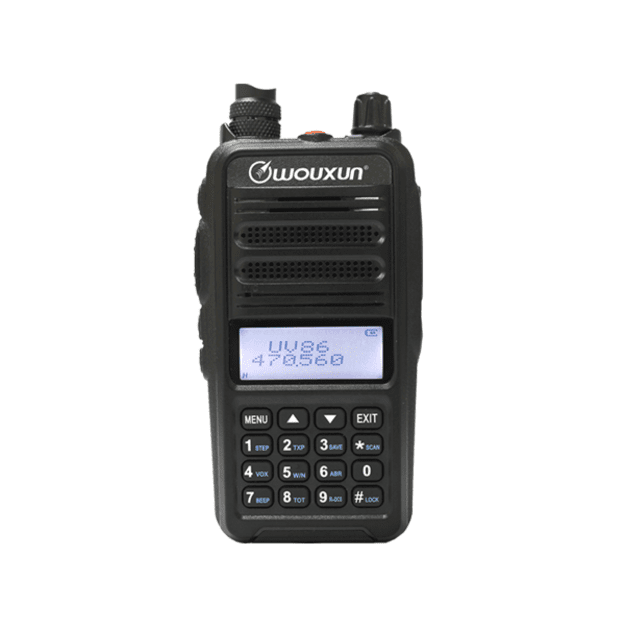

KG-UV86 - Wouxun mėgėjiška nešiojama radijo stotelė, dirbanti VHF ir UHF diapazone.
Pagrindinės funkcijos:
Specifications:
| General | |
| Frequency Range | Suitable For Different Countries or Areas |
| Frequency Step | 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz |
| Channel Number | 400 |
| Work Mode | F2D / F3E |
| Operating Temperature | -20℃～+40℃ |
| Voltage | 7.4VDC |
| Antenna Impedance | 50Ω |
| Transmitter | ||
| Wide | Narrow | |
| Adjacent Channel Selectivity | ≥70dB | ≥60dB |
| Type of Modulation | 16K F3E | 11K F3E |
| Spurious | ≥60dB | ≥60dB |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
| Max Frequency Deviation | ±5KHz | ±2.5KHz |
| Frequency Stability | ±2.5PPM | |
| Audio Distortion | ≤5% | |
| Output Power | 7W / 1W | |
| Receiver | ||
| Wide | Narrow | |
| Adjacent Channel Selectivity | ≤70dB | ≤60dB |
| Inter Modulation | ≤65dB | ≤60dB |
| Spurious Response | ≤70dB | ≤70dB |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio | ≥45dB | ≥40dB |
| Audio Distortion | ≤5% | |
| Audio Power | ≤500mW | |
| Sensitivity | UHF/VHF：0.25µV（12dB SINAD） | |
